4711387861455 TUF-RTX5070TI-O16G-GAMING ASUS nVidia GeForce TUF-RTX5070TI-O16G-GAMING RTX5070TI 16GB GDDR7 2588MHz Boost Clock 28 Gbps 256-bit HDMI*2,DP*3,16G,D7 1484 TOPs
Model
TUF-RTX5070TI-O16G-GAMING
Graphic Engine
NVIDIA® GeForce RTX™ 5070 Ti
AI Performance
1484 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR7
Engine Clock
OC mode: 2610MHz
Default mode: 2588MHz (Boost Clock)
CUDA Core
8960
Memory Speed
28 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Magnet
1 x TUF Gaming Certificate
1 x Thank You Card
1 x Adpater Cable (1 to 3)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
329 x 140 x 62.5 mm
12.95 x 5.51 x 2.46 inch
Recommended PSU
850W
Power Connectors
1 x 16-pin
Slot
3.125 Slot
AURA SYNC
ARGB
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.

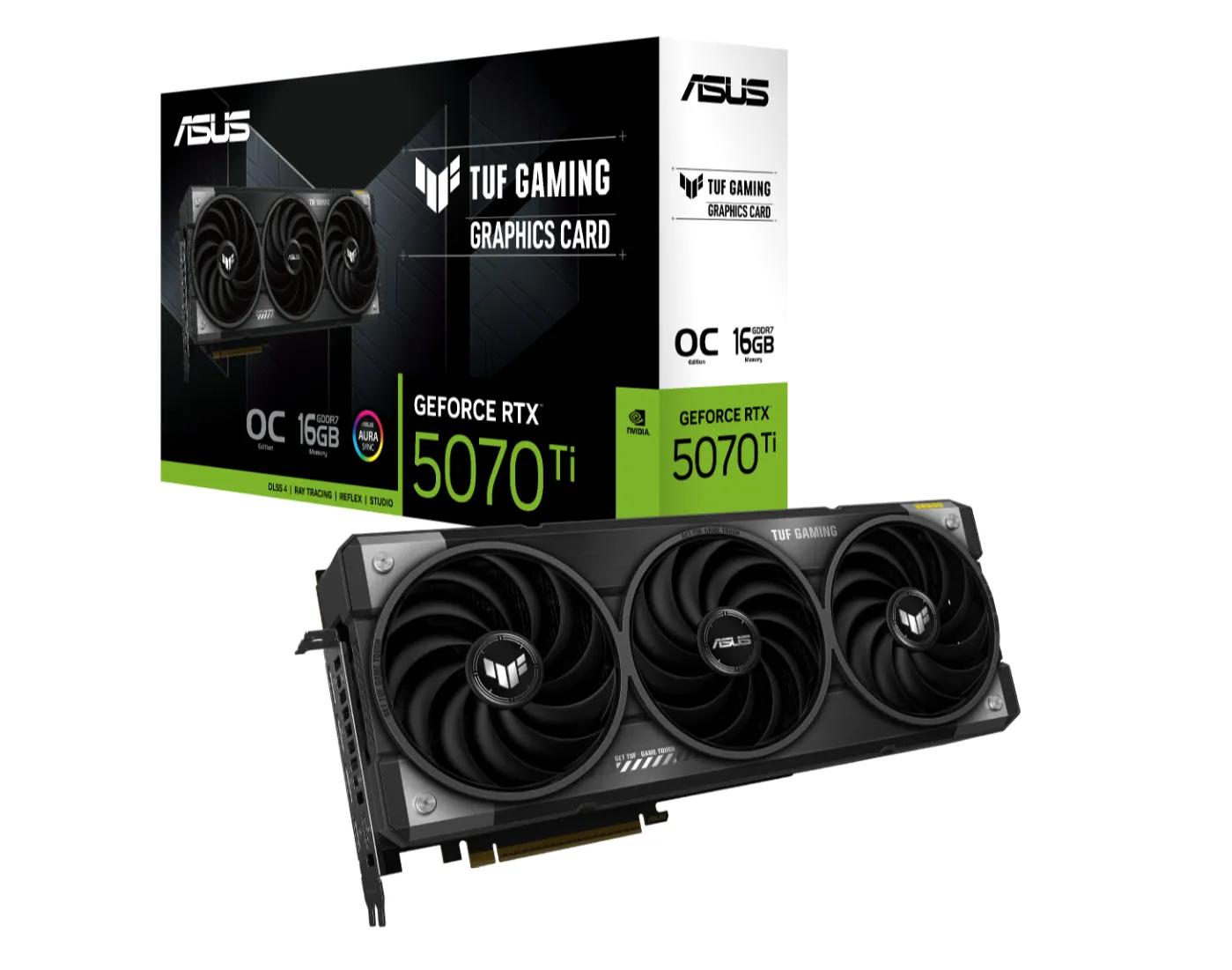

Angled front view of TUF Gaming GeForce RTX 5070 Ti showing triple fans and ARGB lighting
A visual comparison of ASUS MaxContact and a traditional heat speader
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
Exploded view of graphics card with Axial-tech fan highlighted
Axial-tech Upgrades
Axial-tech fans spin on dual-ball bearings and propel up to 31% more air than standard fans.
Graphics card fans with arrows indicating different directions of spin
New Directions
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 50°C, for quieter operation during light tasks. They restart above 55°C, following a speed curve that balances performance and acoustics.
Graphic depicting how airflow passes through the vented exoskeleton of the TUF Gaming RTX 5070 Ti
Vented Exoskeleton
A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation
