Moving freely in small space!
This aerospace aluminum makes the main frame like most world class wheelchairs do. The weight is just 9.5kg. That makes people with disabilities more independent. The folding frame makes a compact size for travel.
This wheelchair uses quick-release rear wheels for easy transport and storage. The performance of the wheels is flexible. The wheeling experience is smoother and more flexible compared to standard wheelchairs on the market.

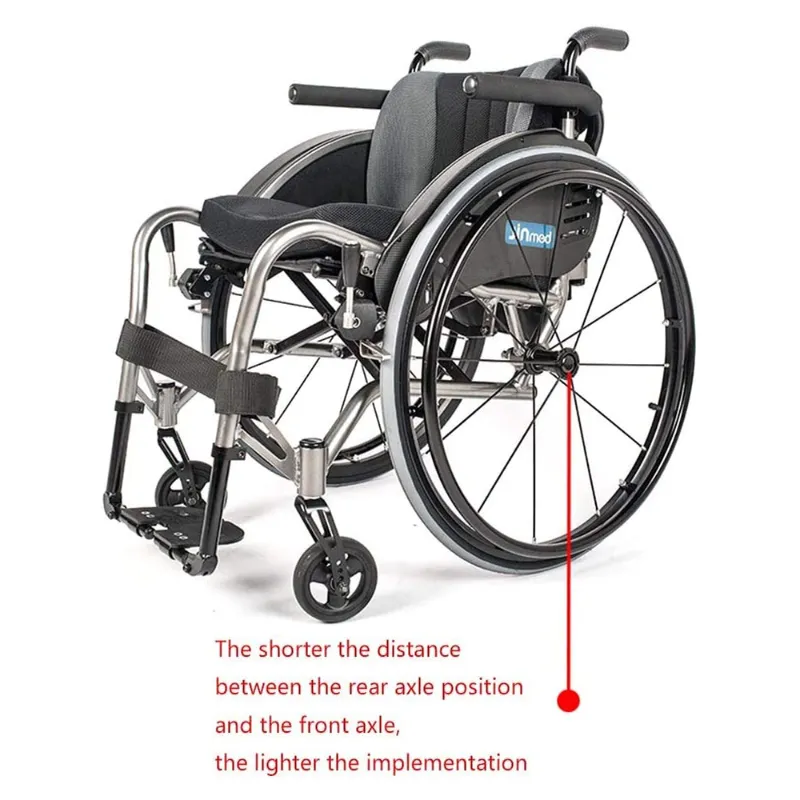

Adjustable Center of Gravity
The center of gravity can be adjusted easily by using a tool. Double cross and thick aluminum frame increased the stability of the wheelchair. Maximum capacity is 100kg/120kg.
Brakes
The wheelchair uses high quality Nissin two-way brake.
Aluminium Castor Hub
The castors are stylish and flexible. The fork and rim are made of lightweight aluminum.
Height Adjustable & Detachable Armrests
The side guard is lightweight, adjustable and removable by using a tool.
The armrest is adjustable by using tools. The armrest is removable for the convenience of transport.
Height Adjustable & Flip-Up Footrest
The footrest is height adjustable and can be flipped-up for easy transfer. The footplate is durable. It is made of lightweight and wear-resistant material.
Tension backrest provides better seating posture
Breathable Upholstery

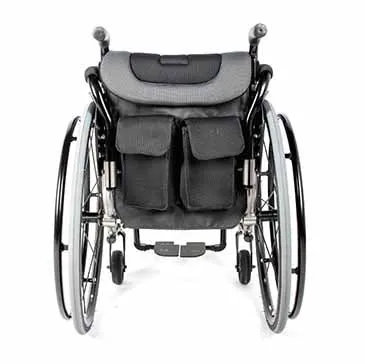

Comfortable back and seat upholstery. The backrest and seat cushion are removeble and washable. Back of seat upholstery attaches with two storage bag.
Carbon Fiber Sideguard
Foldable
Compact folding size for easy storage and easy to carry along for travel
*Colour of wheelchair might differ with the photo. Please check with us the available colour options.
Specifications

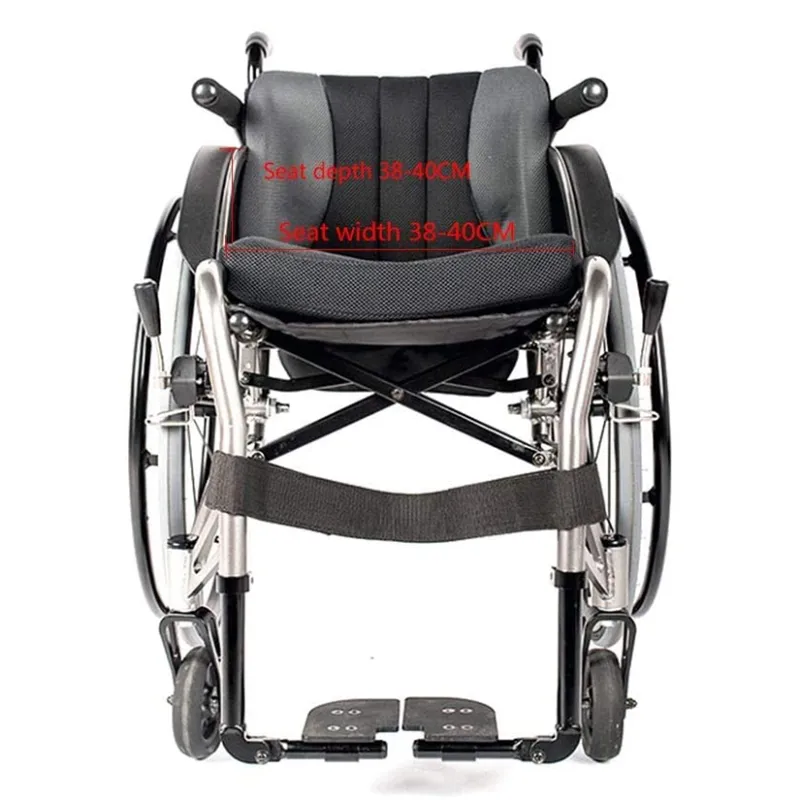

Seat Width | 14" / 16" (36cm / 40cm) |
Seat Depth | 14" / 16" (36cm / 40cm) |
Front Seat Height | 17.5" (44.5cm) |
Rear Seat Height | 16" (40.6cm) |
Back Height | 14" (35.6cm) |
Seat to Armrest Height | 11" (28cm) |
Overall Size: | Based on wheelchair size 16" |
Rear Wheel | 24 x 1"" |
Front Wheel | 4" |
Turning Radius | 800mm |
Material | 7003 Aerial Aluminum Alloy |
Weight | Based on wheelchair size 16" |
Weight Capacity | 120kg |
Warranty | 1 year on frame |
Downloads
NISSIN Lightweight Active Wheelchair Brochure
